NIMET's product portfolio serves both the hydraulic & pneumatic and the linear motion systems sectors. The main product remains the chromed plated rod for hydraulic cylinders used in various applications from industrial equipment (agricultural, construction, mining, offshore, automotive, railways, oil extraction, cranes) to those that we find useful in our daily lives, such as fitness equipment. Heavy industries use about 80% of our production and the rest go to the automation and IT accessories.

NIMAX

BARS

CB

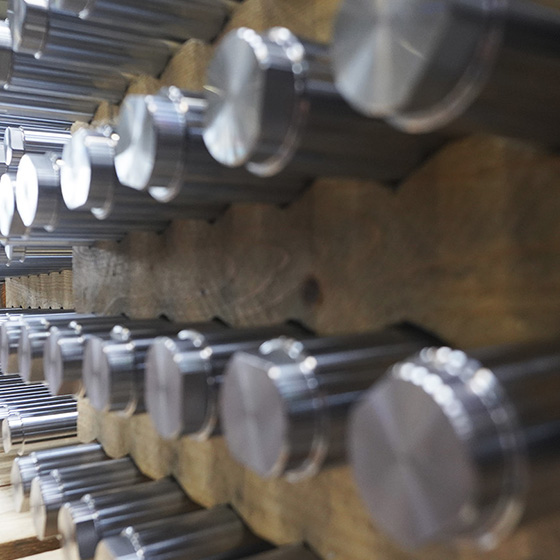

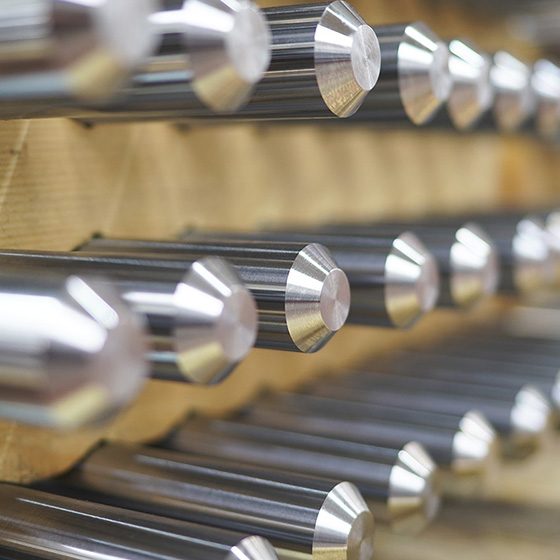

Chrome plated
steel bars

steel grade: C45E, C35E, 20MnV6, 38MnVS6, 42CrMo4
Ø6 - 200 mm / Ø1/4” - 7”

PDF technical sheet

ICB
INDUCTION HARDENED AND
CHROME PLATED STEEL BARS

steel grade: C45E, C35E, 20MnV6, 38MnVS6, 42CrMo4
Ø6 - 200 mm / Ø1/4” - 7”

PDF technical sheet

CBX
Chrome plated STAINLESS
steel Bars

steel grade: W1.4021 (AISI 420) / W1.4057 (AISI 431) / W1.4301 (AISI 304) / W1.4401 (AISI 316) / W1.4542 (AISI 630)
Ø6 - 100 mm / Ø1/4” - 4”

PDF technical sheet

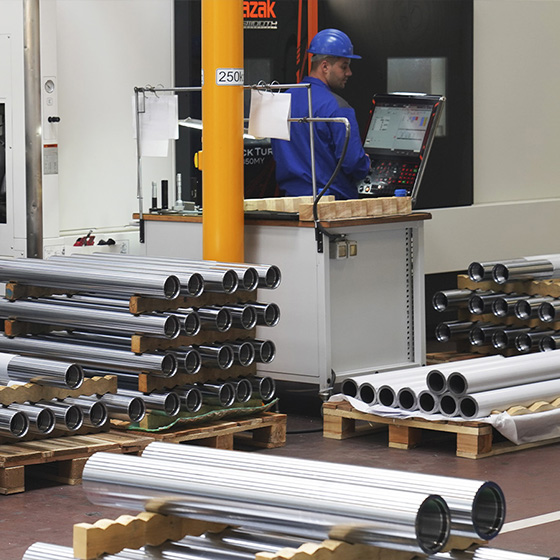

TUBES

CT
Chrome plated
steel Tubes

steel grade: E355+SR, P460N+N, 20MnV6
OD: Ø12 - 140 mm

PDF technical sheet

ICT
Induction hardened and
Chrome plated steel Tubes

steel grade: E355+SR, P460N+N, C45E+N, 20MnV6
OD: Ø12 - 140 mm

PDF technical sheet

TL
Chrome plated Telescopic steel Tubes

steel grade: E355+C, E355+SR
OD: Ø40 - 200 mm, ID: Ø30 - 180 mm

PDF technical sheet

CTI

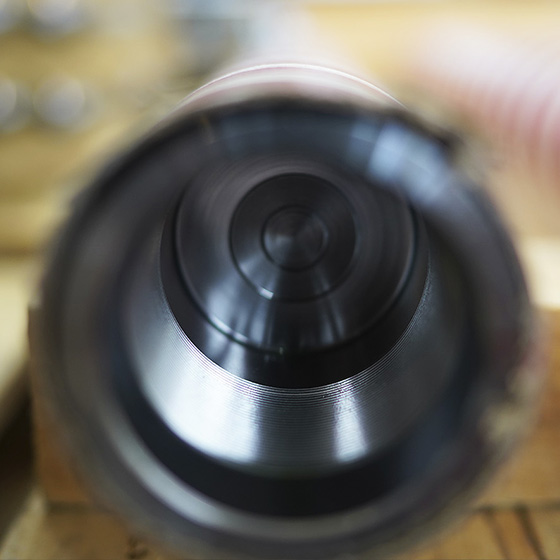

Internal Chrome plated
steel Tubes

steel grade: E355+SR
OD: Ø80 - 225 mm, ID: Ø70 - 200 mm

PDF technical sheet

H8
Cylinder tubes, inside honed or
skived and roller burnished

steel grade: E355+SR, EN 10305-1, E355+C, EN 10305-2
ID: Ø40 - 200 mm

PDF technical sheet

H9
Welded cold drawn tubes, inside
smooth as drawn or honed

steel grade: E355+C, EN 10305-2
ID: Ø20 - 110 mm

PDF technical sheet

NICRO

BARS

NCB
Nickel-Chrome plated
steel Bars

steel grade: C45E, C35E, 20MnV6, 38MnVS6, 42CrMo4
Ø20 - 160 mm / Ø1” - 6”

PDF technical sheet

Induction hardened and Nickel-Chrome
plated steel Bars

steel grade: C45E, C35E, 20MnV6, 38MnVS6
Ø20 - 160 mm / Ø1” - 6”

PDF technical sheet

TUBES

NCT
Nickel-Chrome plated
steel Tubes

steel grade: E355+SR, P460N+N, 20MnV6
OD: Ø30 - 140 mm

PDF technical sheet

Induction hardened and
Nickel-Chrome plated steel Tubes

steel grade: E355+SR, P460N+N, C45E+N, 20MnV6
OD: Ø40 - 125 mm

PDF technical sheet

NI
SERIES

W
Induction hardened and
ground linear shafts

steel grade: Cf53, C55E, C45E
Ø4 - 100 mm / Ø1/4” - 4”

PDF technical sheet

WV
Induction hardened and
hard chrome plated linear shafts

steel grade: Cf53, C55E, C45E
Ø4 - 100 mm / Ø1/4” - 4”

PDF technical sheet

WRB
Induction hardened and ground
stainless steel linear shafts

steel grade: X46Cr13(W1.4034)
Ø4 - 50 mm / Ø1/4” - 2”

PDF technical sheet

WRA
Induction hardened and ground
stainless steel linear shafts

steel grade: X90CrMoV18 (W1.4112)
Ø4 - 50 mm / Ø1/4” - 2”

PDF technical sheet

WP
Deep case hardened and
ground shafts for ball screws

steel grade: Cf53, C55E, 42CrMo4, 50CrMo4
Ø20 - 100 mm / Ø3/4” - 4”

PDF technical sheet

WH
Induction hardened and
ground hollow linear shafts

steel grade: C60E
OD: Ø12 - 50 mm / Ø5/8” - 2”

PDF technical sheet

WHV
Induction hardened and hard
chrome plated hollow linear shafts

steel grade: C60E
OD: Ø12 - 50 mm / Ø5/8” - 2”

PDF technical sheet

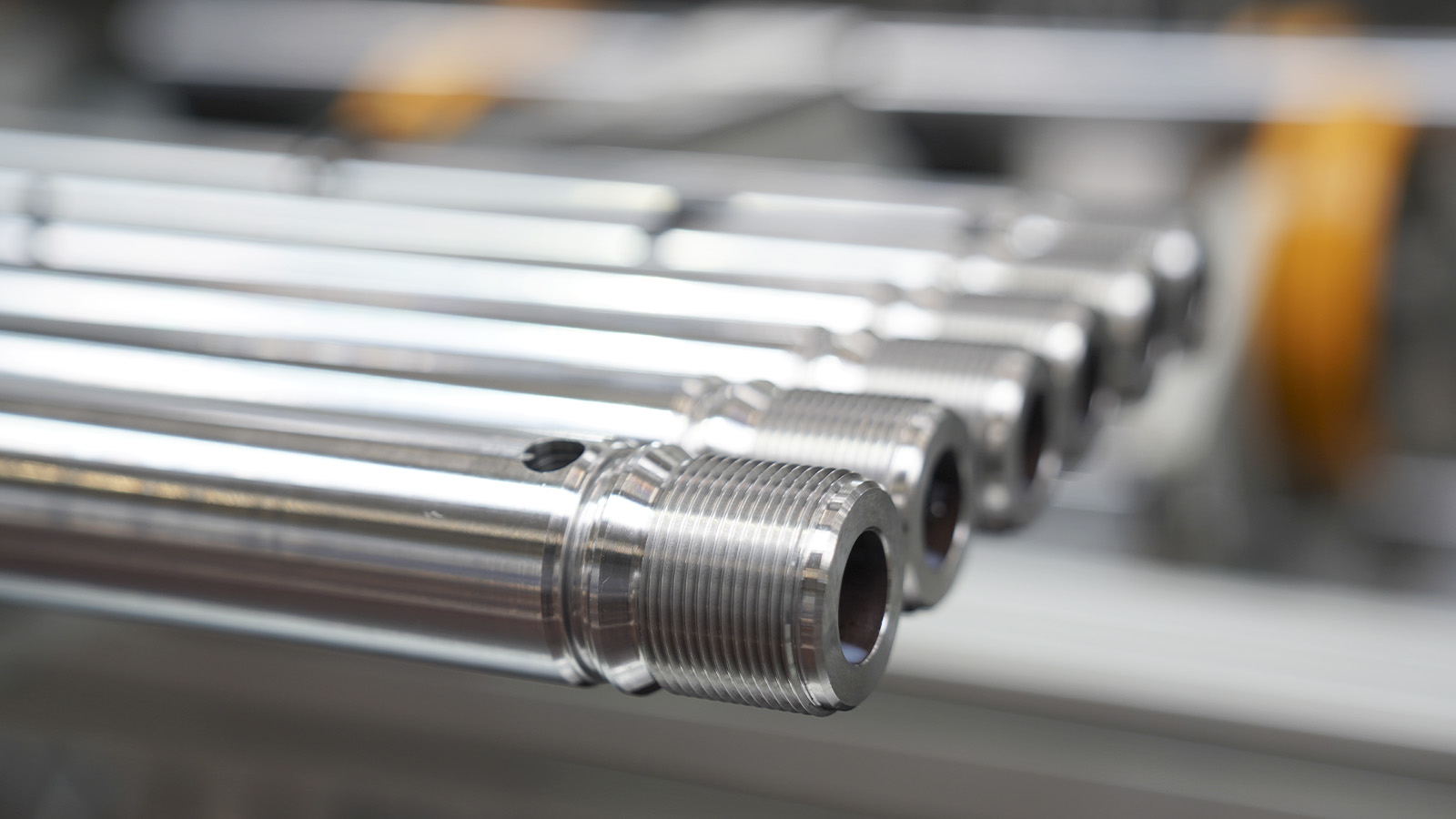

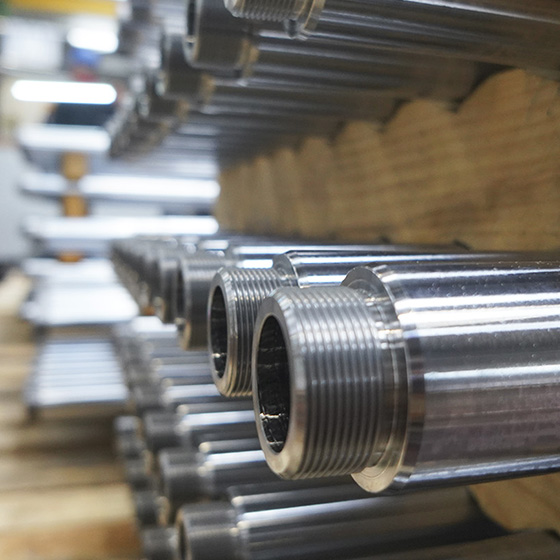

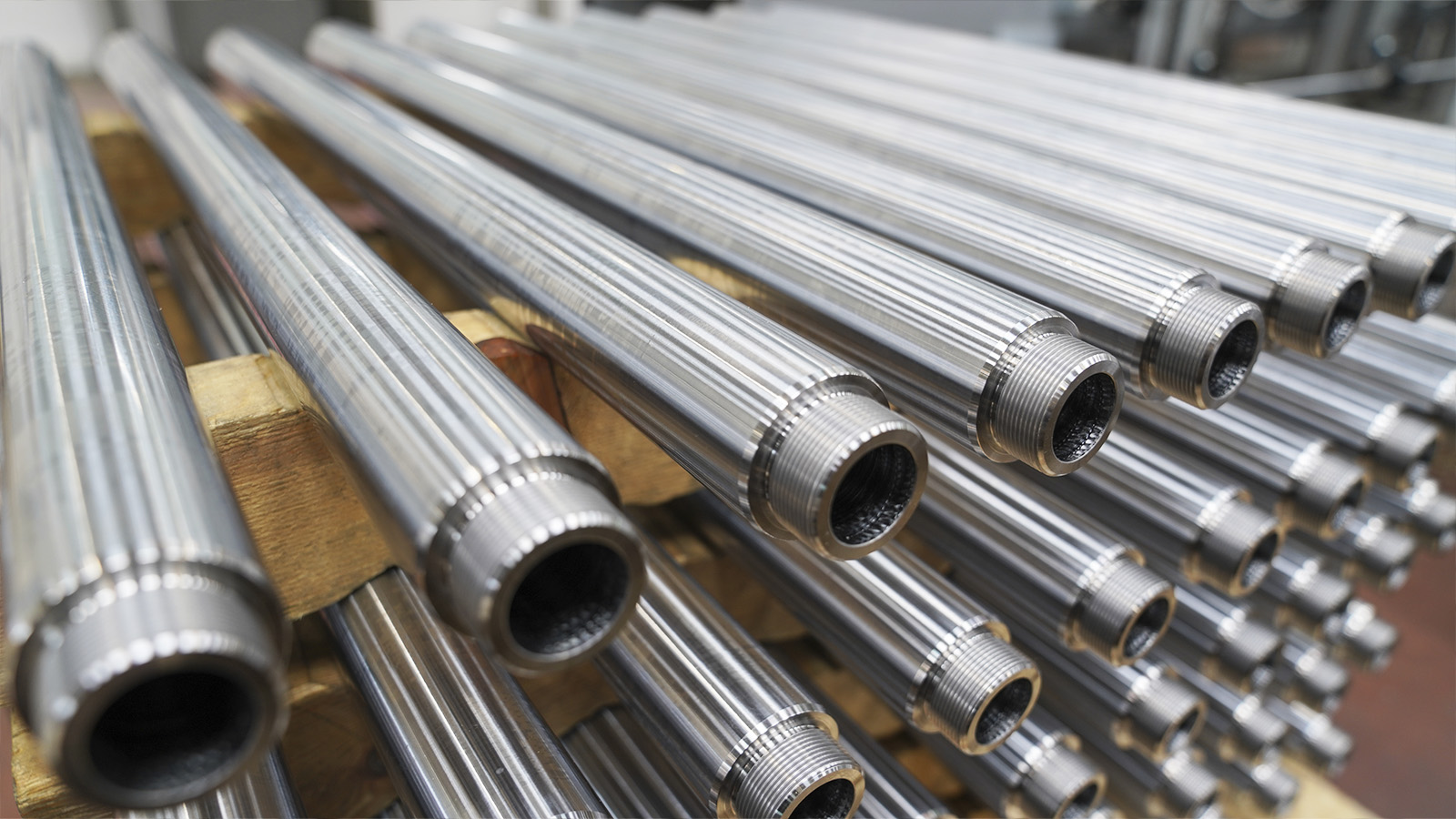

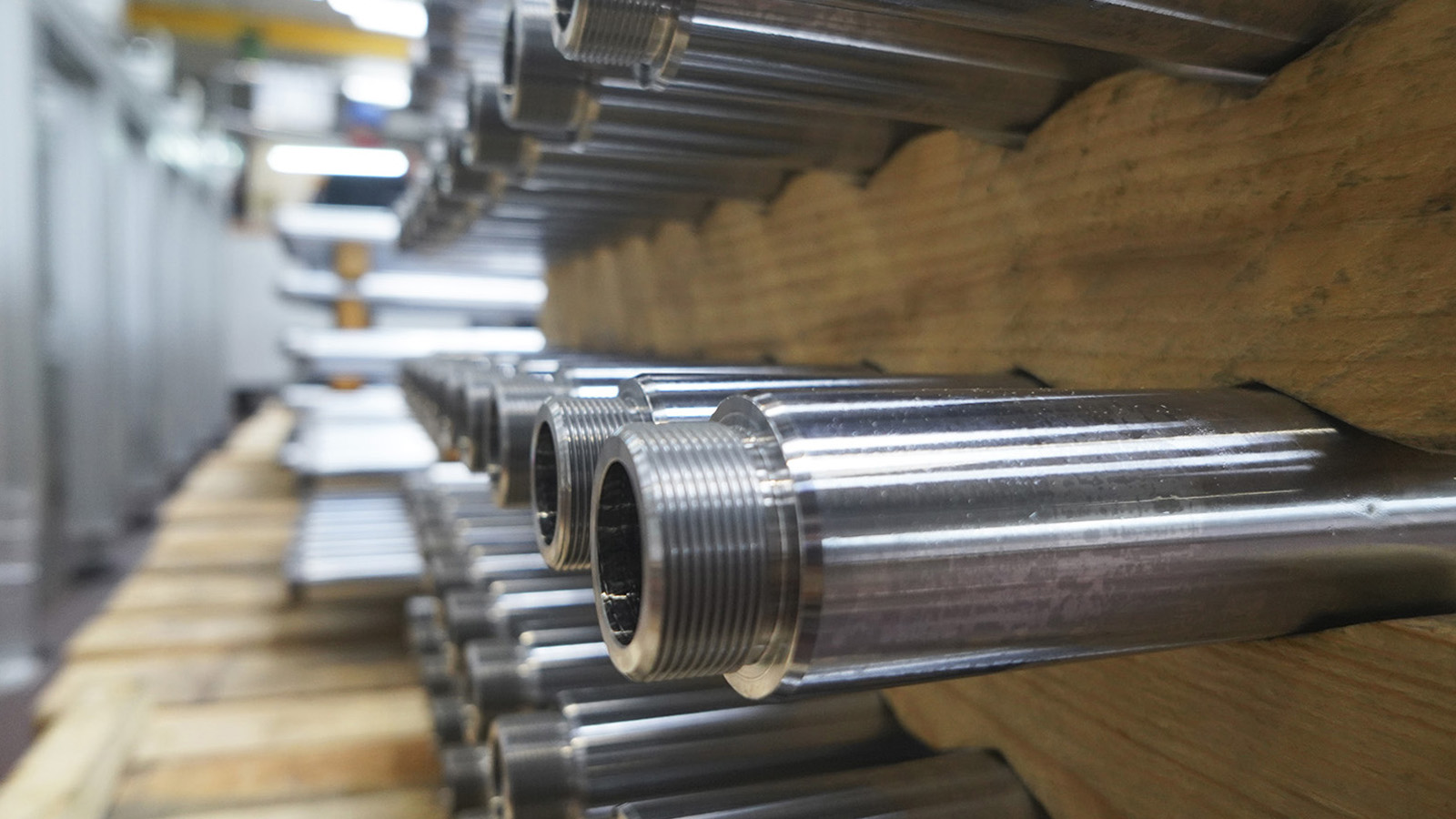

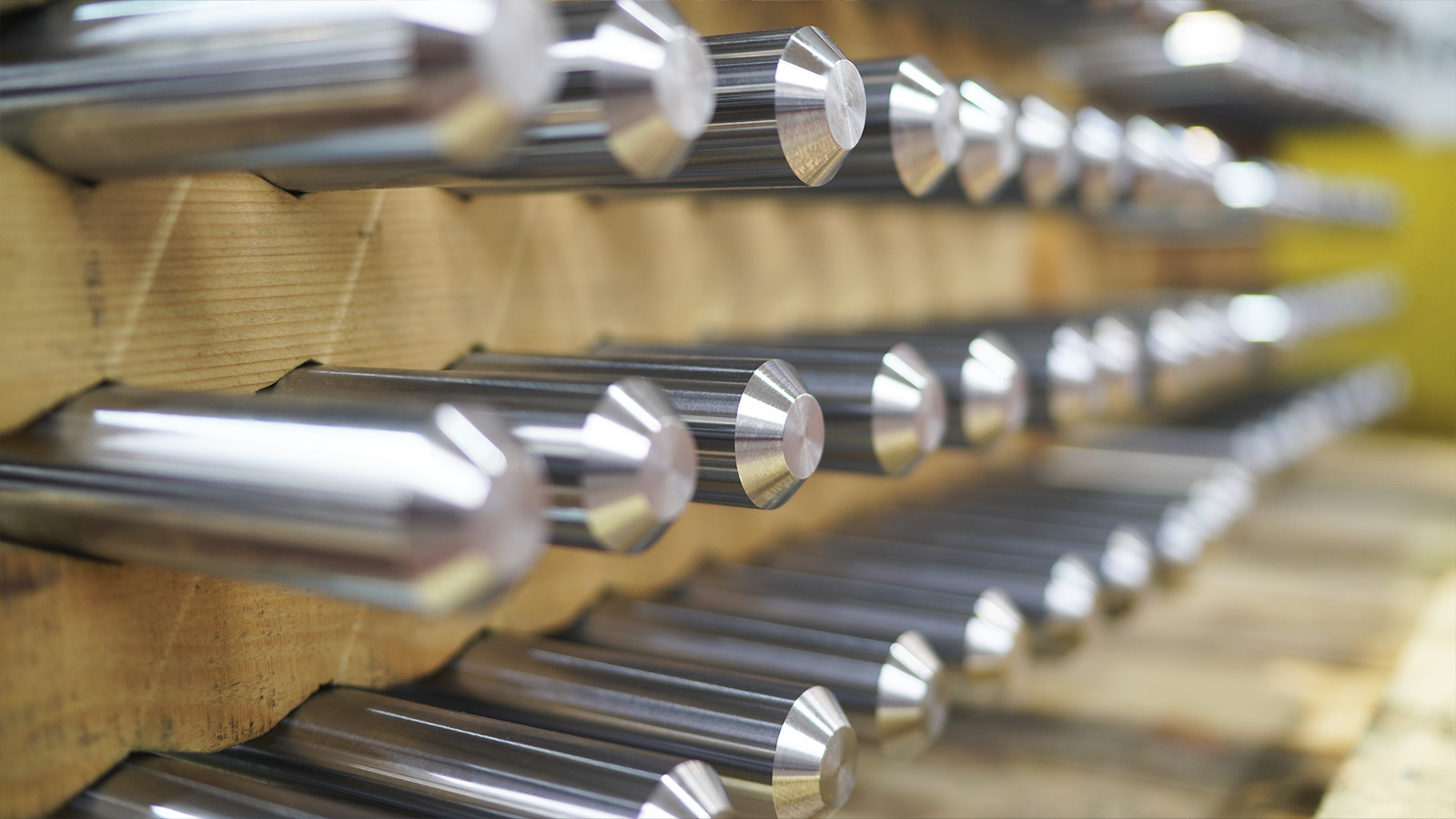

MACHINED
PISTON
RODS

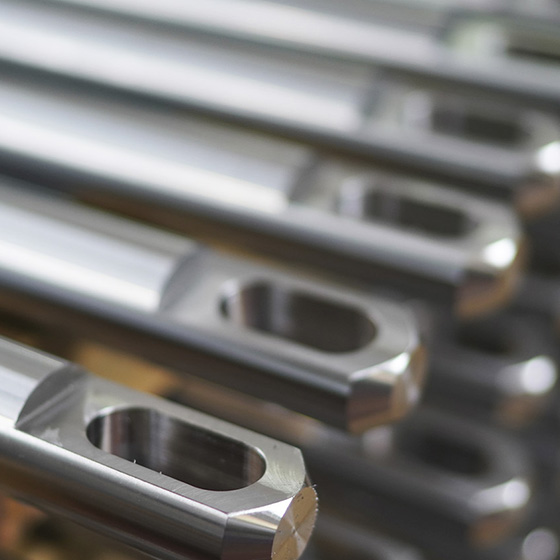

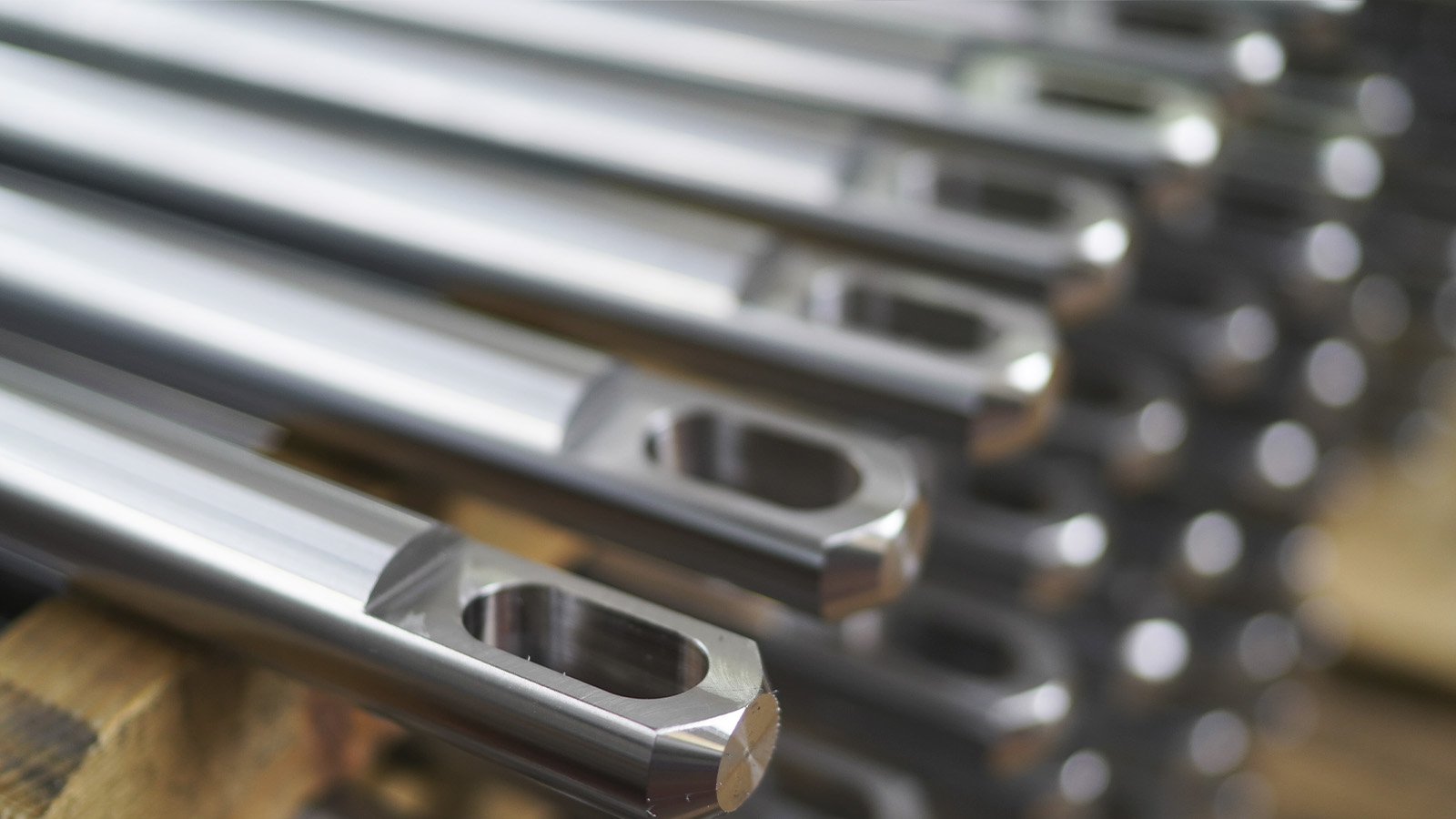

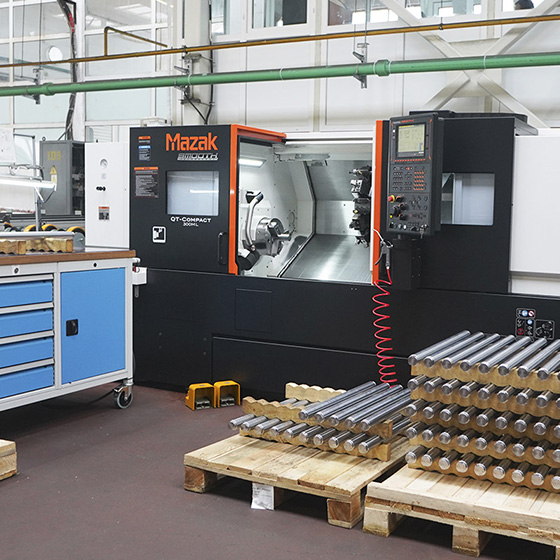

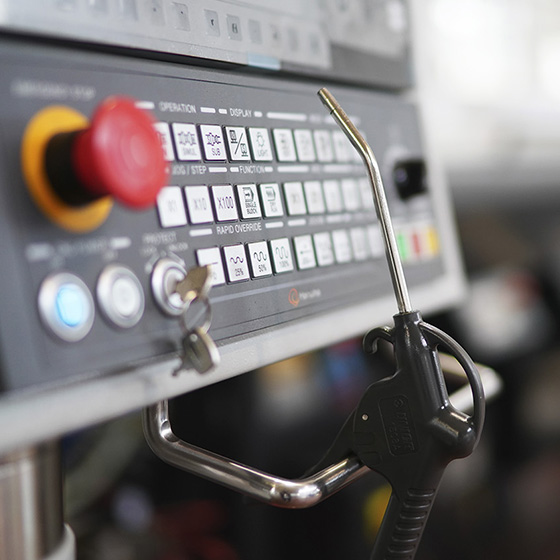

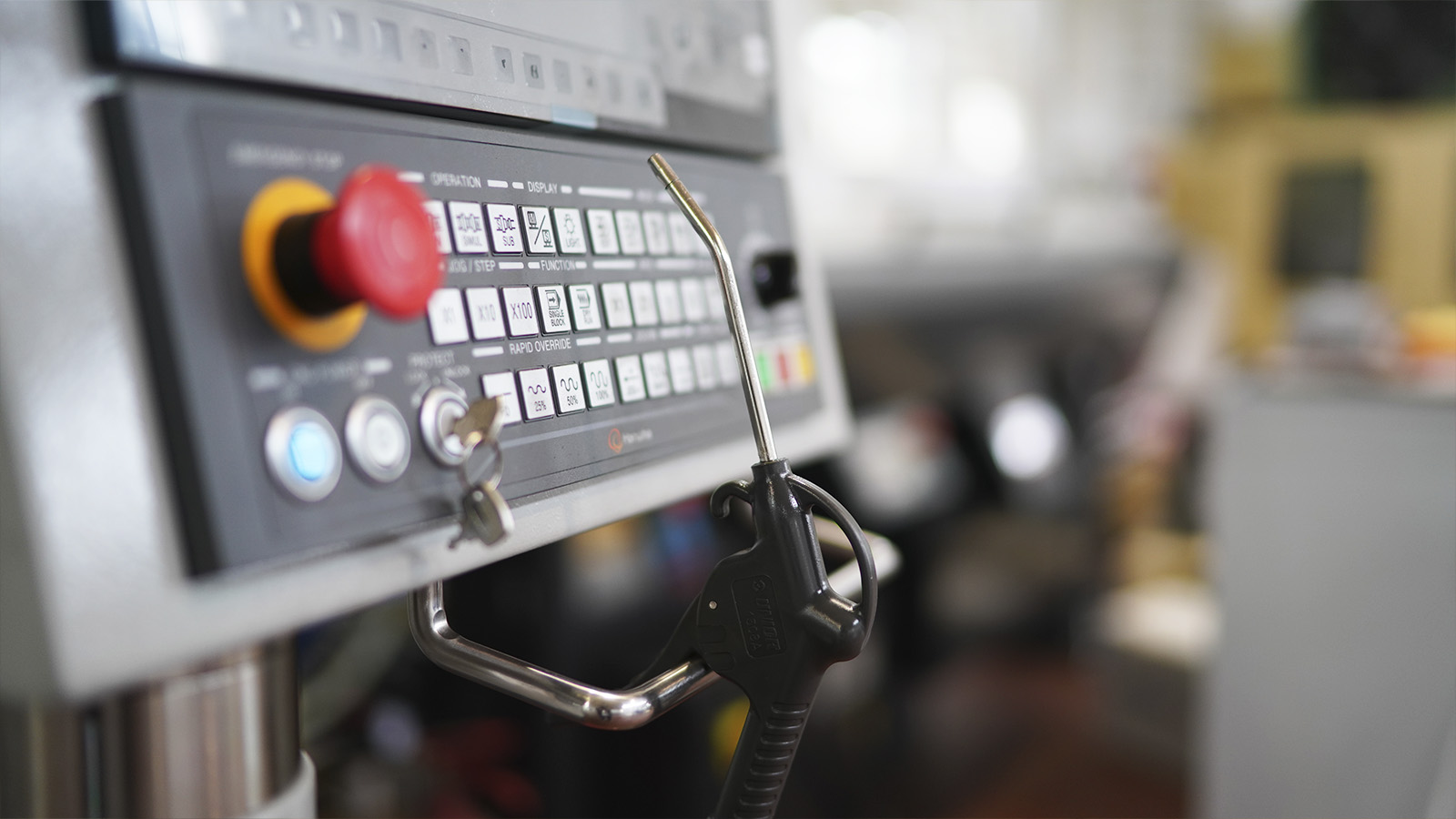

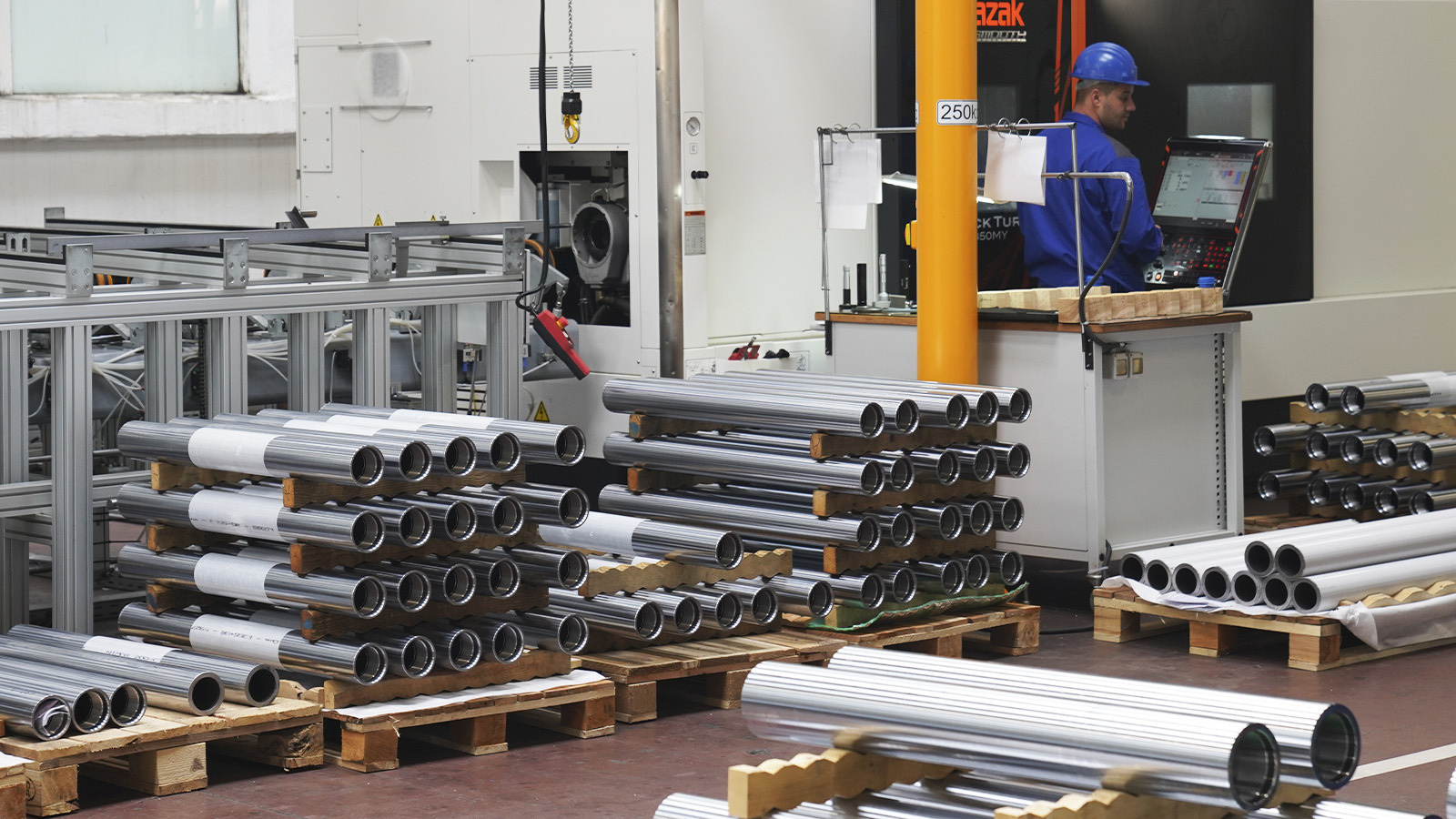

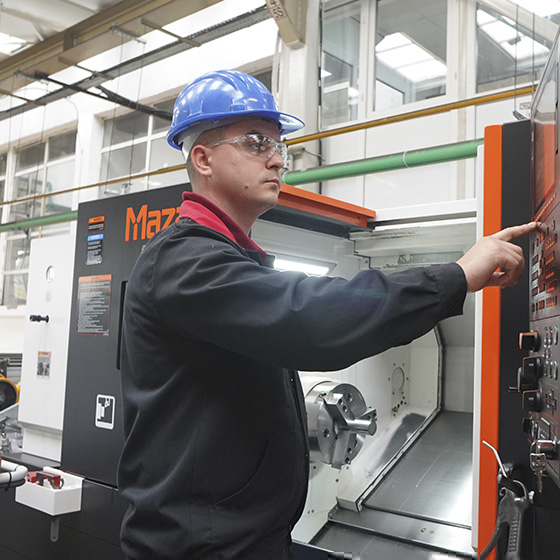

On request we can perform customized cutting and machining according to drawing. We work with the latest technology and our CNC machines can perform high quality turning, milling, threading and drilling.

CROSSWISE GROOVE

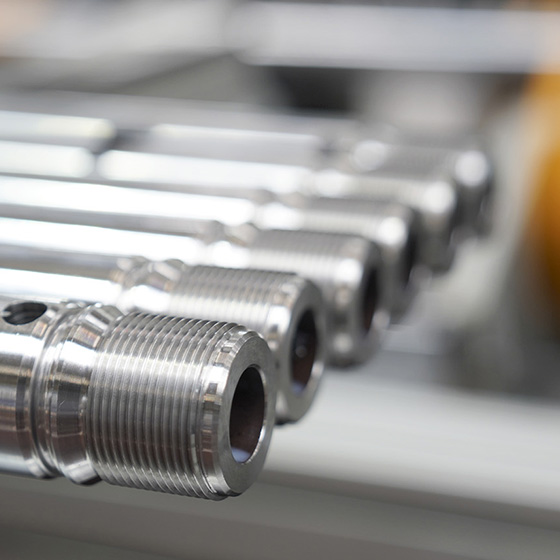

OUTSIDE DIAMETER THREAD
END FOR MOUNT WITH
CLEVIS CLAMP
TAPPED OR DRILLED HOLES RADIALLY THROUGH SHAFT
GROOVES FOR SNAP RING
RADIAL DRILLING HOLES, BORED
REDUCED DIAMETER WITH/WITHOUT FEATHER KEYWAY
REDUCED DIAMETER WITH THREADED END
AXIAL DRILLED AND THREADED TO ENDS
D-CUT SHAPE

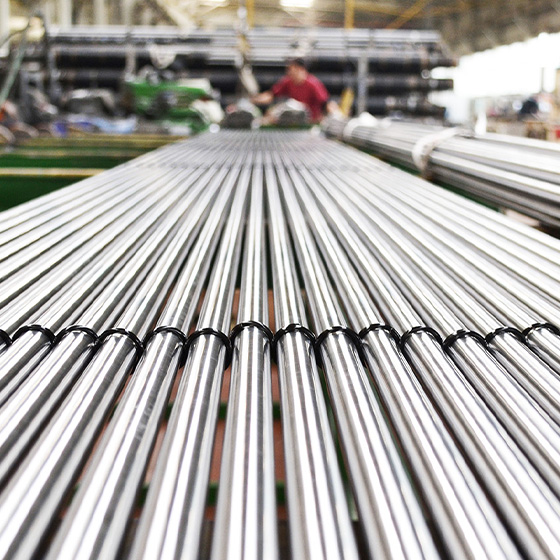

CHROME PLATED STEEL
BARS AND TUBES

Chrome Plated Steel Bars and Tubes
Nickel and Chrome Plated Steel Bars and Tubes
Chrome Plated Stainless Steel Bars
Customized Precision Shafts
